Decoding Concrete Strength Grades for Stronger Builds
Concrete strength grades underpin every structural decision, yet the codes on a delivery docket often look cryptic. This guide decodes the system in plain language, explains how tests confirm each grade, and shows which mix suits paths, floors or soaring bridge piers. Read on to match strength to purpose, secure a durable, cost-effective result for your project, and do so without adding confusion.
What Are Concrete Strength Grades?
Each concrete strength grade is a label that predicts how much pressure a hardened mix can resist after twenty-eight days. The grade comes from the compressive strength of concrete, measured in megapascals during laboratory tests on standard cylinders or cubes. A higher figure signals a stronger mix. For instance, a C25/30 code states that cylinders reach at least 25 MPa while cubes from the same batch pass 30 MPa. Because British and European sites use the same notation, designers, suppliers and inspectors share a single, unambiguous measure.
Strength grades also link directly to the mix ratio for concrete grades. By adjusting the cement, water and aggregate content, producers hit the chosen target while keeping the concrete workable for placement. The grade therefore connects design intent, batching precision and on-site quality control.
Why Concrete Grades Matter
Choosing the correct grade prevents cracks, saves money and protects users. A path poured with a low grade may look fine at first yet crumble under a delivery van, while an unnecessarily high grade in a garden wall wastes cement. Matching concrete applications by grade to the actual loads and exposure keeps projects safe and efficient.
How Are Concrete Grades Classified?
European Standard EN 206 sets the format C X/Y. The letter C stands for concrete. The first figure gives the characteristic cylinder strength; the second gives the cube strength. Because cubes confine lateral spread, they record a higher value. The standard also groups mixes by exposure class, cement type and maximum water–cement ratio, yet the strength code remains the headline.
Concrete grade classification allows engineers to specify performance in a line of text. If plans call for C20/25, production teams know they must supply a mix that reaches 25 MPa in cube tests. They refer to established mix ratios for concrete grades; a typical C20/25 might contain one part cement, two parts sand and four parts coarse aggregate with a controlled water dose. Admixtures fine-tune workability or set time without altering strength.
Understanding the Numbers in Concrete Grades
Consider C25/30. The 25 MPa cylinder target equates to about 3 600 psi, enough for reinforced house floors. The 30 MPa cube target provides a safety margin. Higher steps follow the same logic: C30/37 for car-park decks, C40/50 for bridge spans. The twin numbers show both the test method and the expected performance, removing guesswork.

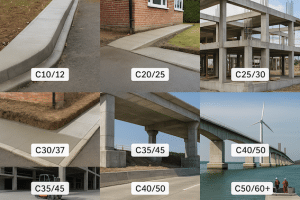

Common Types of Concrete Grades and Their Uses
Concrete grades range from modest C10/12 mixes for blinding right up to specialist C50/60 products for offshore piles. Below is a quick guide to familiar choices and where you will see them poured.
- C10/12 – This low-cement mix forms a clean, level surface on which structural concrete is placed. It also seats kerbs and sets fence posts.
- C15/20 – Often selected for trench-fill foundations in small extensions, it fills voids quickly and gains strength adequate for light buildings.
- C20/25 – The workhorse grade for UK housing. It supports domestic slabs, strip footings and driveways that carry family cars.
- C25/30 – With extra cement and reduced water, this grade carries heavier live loads and resists moderate freeze-thaw action. It is common in reinforced beams and columns.
- C30/37 – Used for multistorey car parks, farm yards and industrial floors, it copes with forklifts and de-icing salts.
- C35/45 – Pile caps, retaining walls and high-rise cores need this higher strength to limit member size and crack width.
- C40/50 – Bridge decks, airport aprons and heavy-plant bases rely on this grade when long spans or heavy wheel loads demand extra capacity.
- C50/60+ – Nuclear facilities, offshore structures and high-performance precast elements call for these mixes, which include low water–cement ratios, silica fume and sometimes steel fibres.
Low-Strength vs High-Strength Concrete Grades
Low-strength grades, from C10 to C20, are forgiving and quick to finish. They suit non-load-bearing layers and paths. High-strength grades, C30 and above, demand tighter control of mix and curing yet deliver superior load capacity and durability. Choose the group that matches the worst load your element will face. Higher strength classes are often required in Commercial Concrete Services such as industrial flooring and structural builds.
How to Choose the Right Grade of Concrete for Your Project
Start with the load case. Calculate the combined weight of the structure and its live loads, such as vehicles or crowds. Next, consider environmental conditions: repeated freeze-thaw cycles, de-icing salts, or sulphate-bearing soils may push you to a higher grade or a special cement. Factor in member size; thin sections crack more easily and often need extra strength. Finally, balance cost and carbon footprint. A grade that is just strong enough saves cement and reduces emissions.
Consulting a Professional for Guidance
If you are unsure, ask a structural engineer or contact Multi-Crete. Our specialists match grade to application every day and can arrange prompt delivery across the Midlands. Visit our product range to learn more.
Testing and Ensuring the Strength of Concrete
Concrete strength testing starts on site. Fresh mix is sampled and placed into 150 mm cube moulds in three layers, each compacted with a tamping bar. The cubes rest under damp hessian for twenty-four hours, then cure in water at 20 °C until test day.
Technicians crush the cubes after seven and twenty-eight days, recording the peak load to calculate compressive strength. A batch passes if the average of three cubes reaches or exceeds the specified grade, with no individual result falling more than 3 MPa below target. This objective check guards against errors in batching, excess water addition or cement substitution.
Further concrete strength testing methods, such as rebound hammer, core drilling or ultrasonic pulse velocity, monitor existing structures without destructive removal. Regular records demonstrate compliance, reassure clients and help insurers. By pairing accurate tests with careful curing, contractors ensure the concrete delivered matches the promise declared by its grade.
